Product Highlights

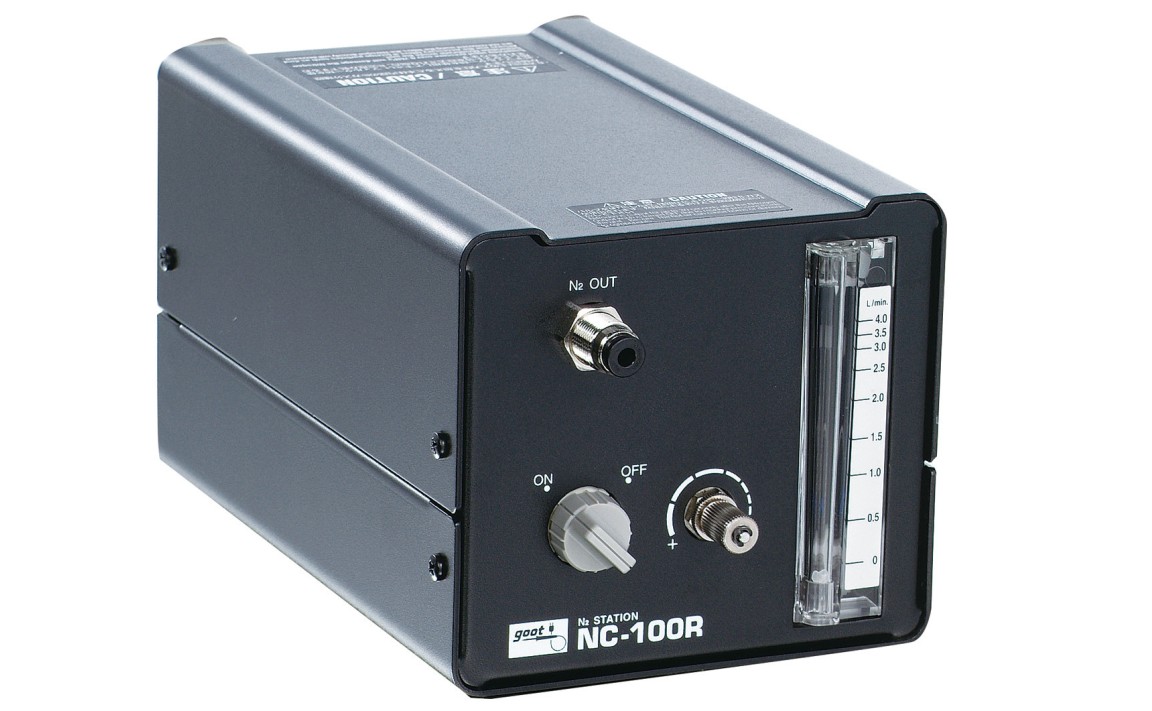

The NC-100R is a compact nitrogen generator and controller designed to provide a stable nitrogen supply for lead-free soldering applications. It separates nitrogen from compressed air using a special separation membrane and maintains a stable output pressure of 0.2 MPa. When combined with the RX-802ASPH, its two-tiered setup enables efficient operation while saving workspace.
- Compact N2 station combining a nitrogen generator and controller.
- Nitrogen generation density up to 99.5% at 0.7 MPa input pressure and 0.5 L/min flow rate.
- Recommended nitrogen generation flow rate of 1.0 L/min.
- Flow meter range of 0.5 to 4.0 L/min for controlled nitrogen flow.
- Input pressure range of 0.3 to 0.7 MPa.
- Input temperature range of 5°C to 50°C.
- Stable output pressure of 0.2 MPa for consistent nitrogen supply.
- Special separation membrane separates nitrogen from compressed air produced by a compressor.
- Two-tiered setup with RX-802ASPH enables efficient work in a smaller space.
- Compact dimensions of 118 × 112 × 185 mm excluding protruding parts.
- Lightweight 2 kg design for convenient installation and handling.
- Anti-static and RoHS compliant.
