Product Highlights
RX-822AS Temperature-Controlled Lead-Free Dual-Port/ Dual-Channel Soldering Station is designed for high-efficiency electronics manufacturing and rework applications. Its dual-port design allows two soldering irons to operate simultaneously, making it ideal for handling multiple soldering tasks with improved productivity. Equipped with intelligent control functions and ergonomic handpieces, it delivers precise temperature control, operator comfort, and reliable lead-free soldering performance. It is an Anti-Static (ESD) Lead Free Soldering Station.
Key Features:
- Dual-port soldering station supports the simultaneous use of two soldering irons for increased productivity.
- Adjustable Temperature Range: 50°C to 450°C for both channels separately.
- Power Consumption: 220–260 W
- Channel 1/ Port 1: 75 Watts
- Channel 2/ Port 2: 150/ 75 Watts (depending on Tips being used)
- No Calibration Required: Auto-Calibration available if correct tip number is entered in settings.
- Fastest In It’s Class: Reaches 350°C in only 14 seconds. (Only 6 seconds when using RX-80HRT tips).
- Independent Temperature Displays: Allow individual temperature settings for each soldering iron.
- Supports Chip Component Rework: Using two soldering tips simultaneously or XST-80G Soldering Tweezer Unit.
- Advanced Intelligent Functions (PAT.): Including Sleep Mode, Sleep Release, Automatic Shutdown, and Key Lock for efficient operation.
- Lightweight, Well-Insulated Ergonomic handpieces: Provides greater comfort during prolonged soldering tasks with Reduced Grip Heat (PAT.) (Patented thermal-insulation grip permits comfortable and safe work).
- Anti-Static handpiece (ESD).
- Thick Tip Coating for Lead-free Soldering: All tips have extra-thick iron plating, to resist erosion by lead-free solder. Hence you get EXTRA-ORDINARY LONG TIP LIFE (PROVEN IN INDIAN INDUSTRY SINCE 1996)

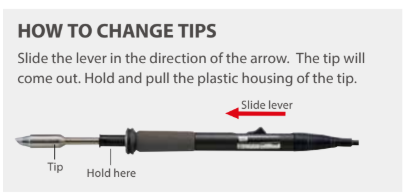

- Tool-Free Tip Replacement: Enables quick and safe replacement of hot soldering tips.

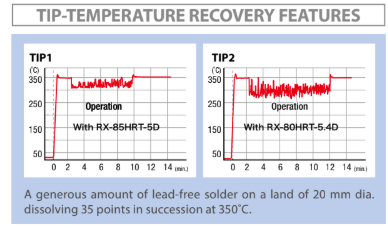

- Excellent Heat Recovery: Maintains consistent tip temperature during continuous lead-free soldering.

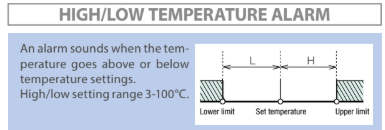

- Digital Calibration and High/Low Temperature Alarm ensure precise temperature control and process reliability.

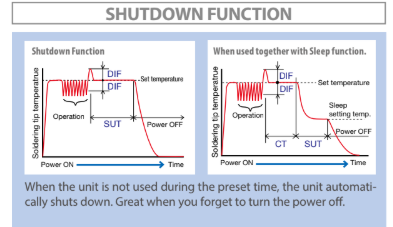

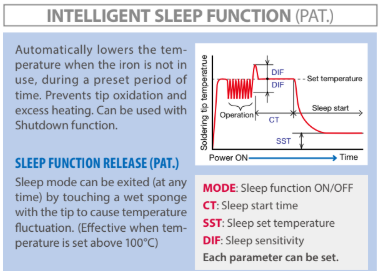

- Intelligent Sleep (PAT.) and Automatic Shutdown Functions: help reduce oxidation, save energy, and extend tip life.
Note:
Applicable Tips:
1) Channel 1/ Port 1 (75W): RX-80HRT and RX-81HRT Series
2) Channel 2/ Port 2 (150 w): RX-85HRT , RX-80HRT and RX-81HRT Series
Applicable Iron Handpiece:
1) Channel 1/ Port 1 (75W): RX-81GAS, RX-80GAS, and XST-80G Soldering Tweezers Unit (XST-80HRT tips applicable)
2) Channel 2/ Port 2 (150 w) : RX-85GAS, RX-81GAS, RX-80GAS, and XST-80G Soldering Tweezers Unit (XST-80HRT tips applicable)
