Product Highlights

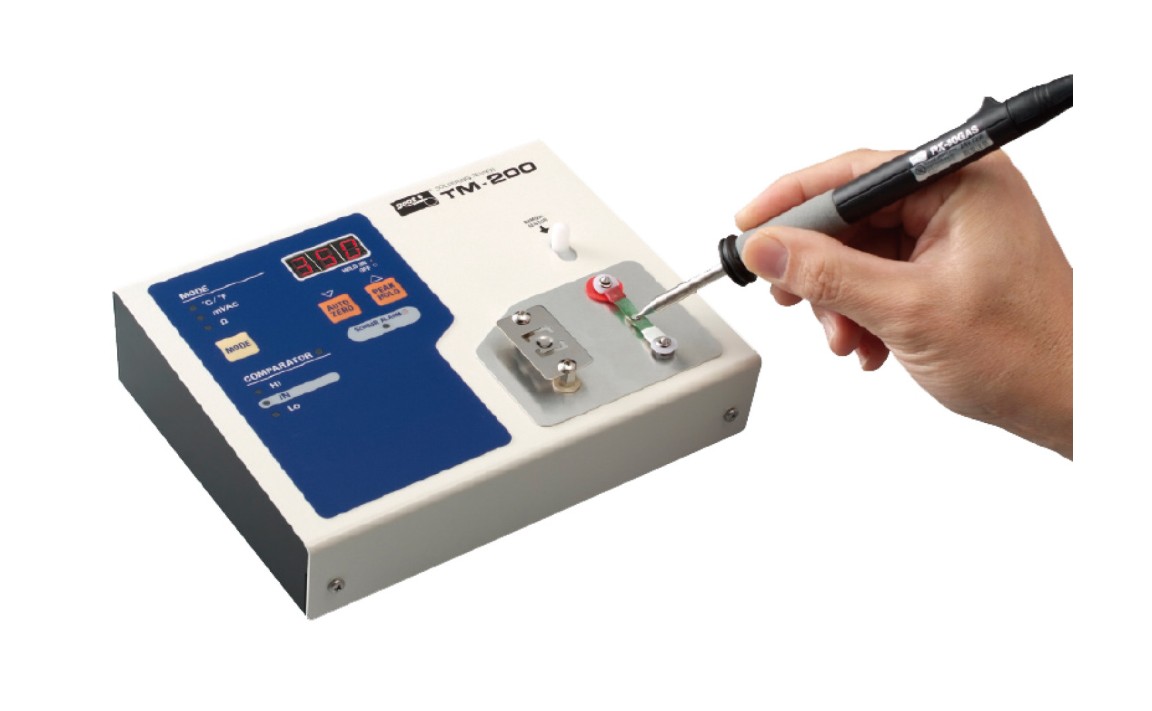

The TM-200 is a multi-function tester designed to measure soldering iron tip temperature, leak voltage, and tip-to-ground resistance. It supports a wide temperature range with quick and stable measurement, while functions such as Peak Hold, Auto Zero, Comparator, and Sensor-Life Counter Alarm make testing faster and more reliable.
- Multi-function soldering tester measures tip temperature, leak voltage, and tip-to-ground resistance.
- Temperature measuring range: 0°C to 500°C with TM-100S sensor and up to 700°C with optional TM-100SP probe.
- Temperature accuracy: ±3°C from 0°C to 500°C and ±4°C from 501°C to 700°C.
- Leak voltage measuring range: 0–200 mV with accuracy of ±(5% of reading value + 1 digit).
- Tip-to-ground resistance measuring range: 0–200 Ω with accuracy of ±(5% of reading value + 1 digit).
- 1°C temperature resolution for precise tip temperature measurement.
- Peak Hold function retains the displayed temperature or measured value for convenient reading.
- Comparator function provides warning lamp and buzzer indications for pass/fail results against preset upper and lower limits.
- Auto Zero function automatically corrects zero error when measuring leak voltage and earth resistance.
- Sensor-Life Counter Alarm helps estimate the operating life of the sensor, which is rated for over 200 uses.
- Accessories: Sensor (3 pcs.), earth connecting lead, fuse, power cord, and plug adapter.
- Universal power supply allows operation without a transformer.
- RoHS compliant.
