Product Highlights
The ASA BS-6800 is a high-efficiency brushless electric screwdriver designed for precise and efficient screw fastening. It provides a torque range of 5-25 kgf-cm with a no-load speed of 500–750 RPM. The screwdriver features high-precision torque control, stepless torque adjustment, and low-voltage DC operation with compatible controllers. Its brushless motor design supports reduced maintenance and clean-room applications.

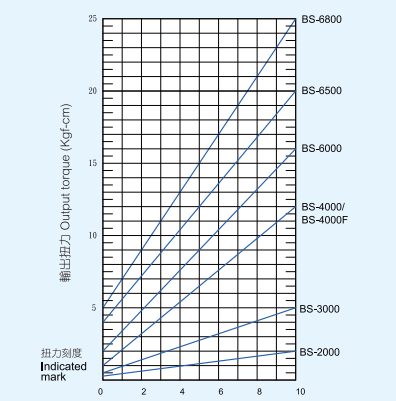

- Torque Range: 5–25 kgf-cm / 4.3–21.7 lbf-in
- Motor: High-efficiency brushless motor
- No-Load Speed: 500–750 RPM
- Torque Control: High-precision torque control
- Torque Setting: Stepless torque adjustment
- Power Source: 20–30V DC, adjustable
- Applicable Machine Screw: 3.0–5.0 mm
- Applicable Tapping Screw: 2.6–4.0 mm
- Weight: 412 g
- Length: 227 mm
- Grip Diameter: 33 mm
- Available Bit Size: 5 mm and 6.35 mm (1/4″) hex shank
