Product Highlights

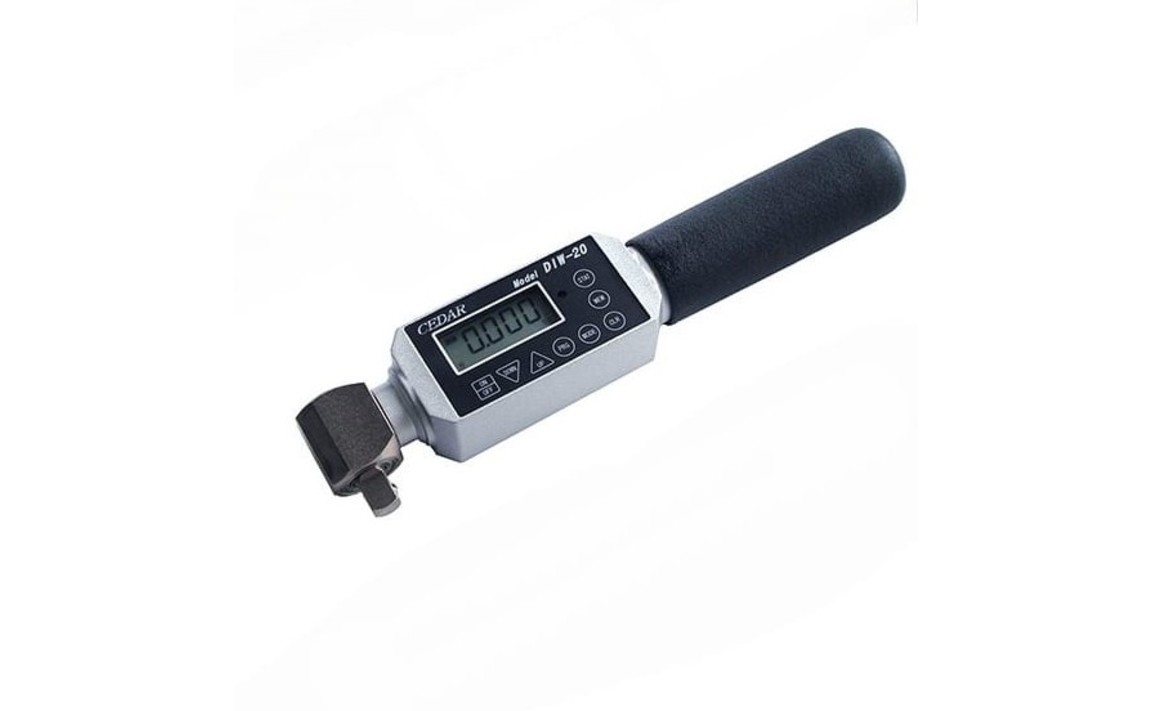

The DIW-20 is a digital torque wrench designed for accurate torque measurement and controlled tightening applications. It provides a torque range of 2.0-200 kgf-cm with ±0.5% reading accuracy. The wrench supports clockwise and counterclockwise operation with selectable Peak, Real Time, and Peak Down measurement modes. It also provides programmable high and low torque set points for GO/NO-GO testing and stores up to 800 measurement data points.
- Torque Range: 2.0–200 kgf-cm / 0.20–20 N·m / 2.0–174 lbf-in
- Accuracy: Reading ±0.5% (499 or less digit ±3 digit)
- Measurement Direction: CW and CCW
- Measurement Modes: Peak, Real Time, and Peak Down
- GO/NO-GO Testing: Programmable high and low torque set points
- Set Point Memory: Up to 5 sets
- Data Memory: 800 data points
- Data Output: USB output in ASCII format, 19200 baud rate
- Display: 4-figure digital LCD
- Auto Clear: Adjustable from 0.0–3.0 seconds
- Power: Ni-MH rechargeable battery, 1.2V × 4 cells, 800mAh
- Battery Use: Approximately 12 hours; charging time approximately 5 hours
- Weight: Approximately 470 g
