Product Highlights

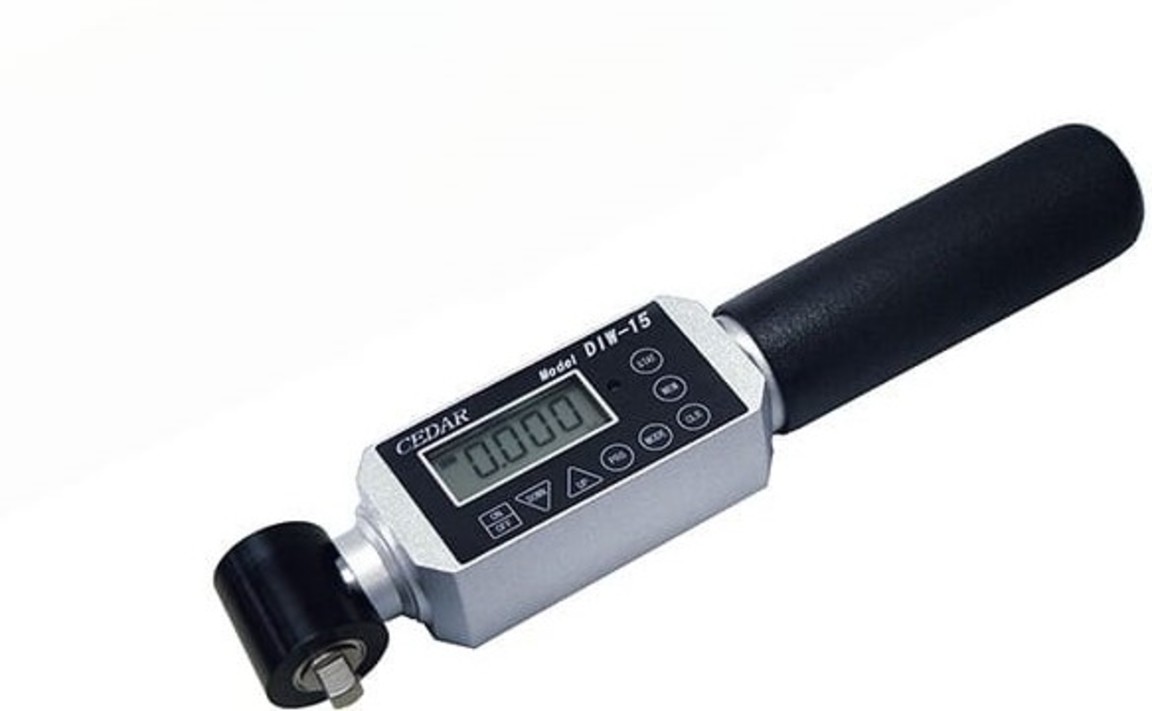

The DIW-15 is a digital torque wrench designed for accurate torque measurement and controlled tightening applications. It provides a torque range of 2.0–150 kgf-cm with ±0.5% reading accuracy. It supports clockwise and counterclockwise operation, Peak, Real Time, and Peak Down measurement modes, programmable high and low torque limits, and 800-data memory.
- Torque Range: 0.20–15 N-m / 2.0–150 kgf-cm / 2.0–130 lbf-in
- Accuracy: Reading ±0.5% (199 or less digit ±1 digit)
- Measurement Direction: CW and CCW
- Measurement Modes: Peak, Real Time, and Peak Down
- GO/NO-GO Testing: Programmable high and low torque set points
- Set Point Memory: Up to 5 sets
- Data Memory: 800 data points
- Data Output: USB output in ASCII format, 19200 baud rate
- Display: 4-figure digital LCD
- Auto Clear: Adjustable from 0.0–3.0 seconds
- Power: Ni-MH rechargeable battery, 1.2V × 4 cells, 800mAh
- Battery Use: Approximately 12 hours; charging time approximately 5 hours
- Weight: Approximately 430 g
