CD-10M
CEDAR

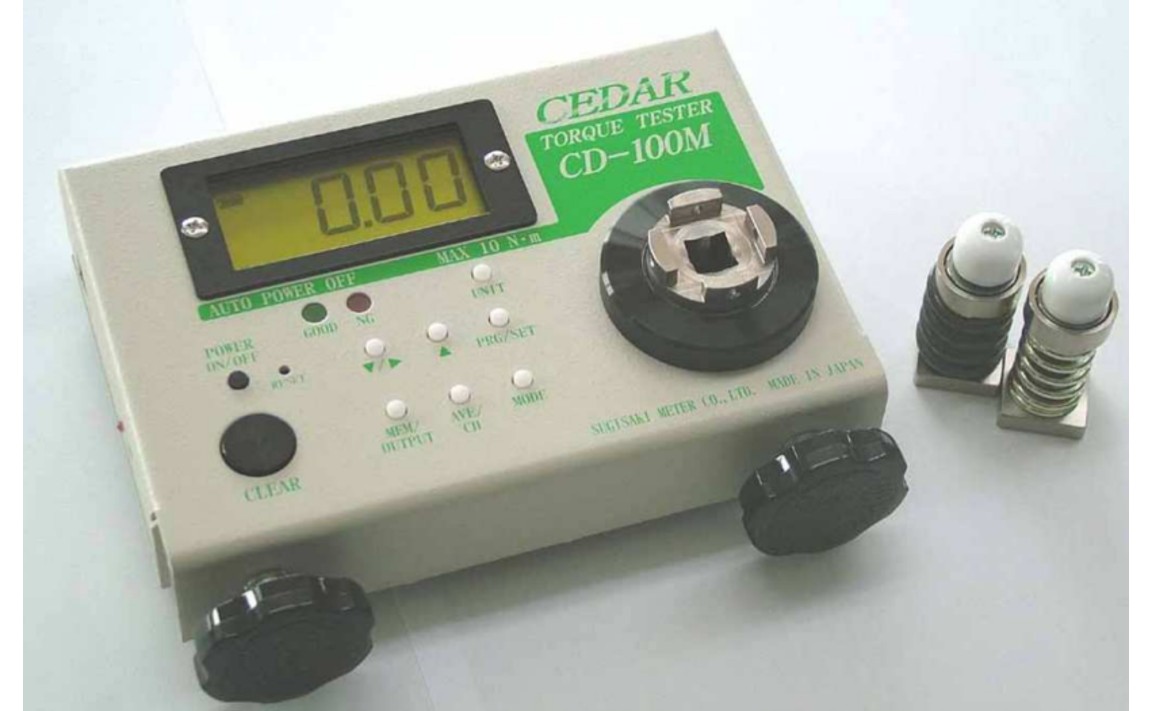

CD-100M

Torque Meter 1-100 Kgf-cm

Enquire Now
Categories: , Tags: , , , , ,
Key Features

Product Highlights

  • It is a Japanese Product.
  • One of the most popular Torque tester in the market.
  • Accuracy of ±0.5%.
  • For Management of torque of Electric Screw Driver.
  • Torque Range : 0.10~10 N・m / 1.0~100 kgf・cm / 1.0~90 lbf・in
  • Equipped with pass/fail function
  • Displays average, maximum and minimum value
  • Selectable measurement units
  • Memory size is 800 data
  • Equipped with USB port
Attachments

Product Datasheet

Download

Catalogue

Download
