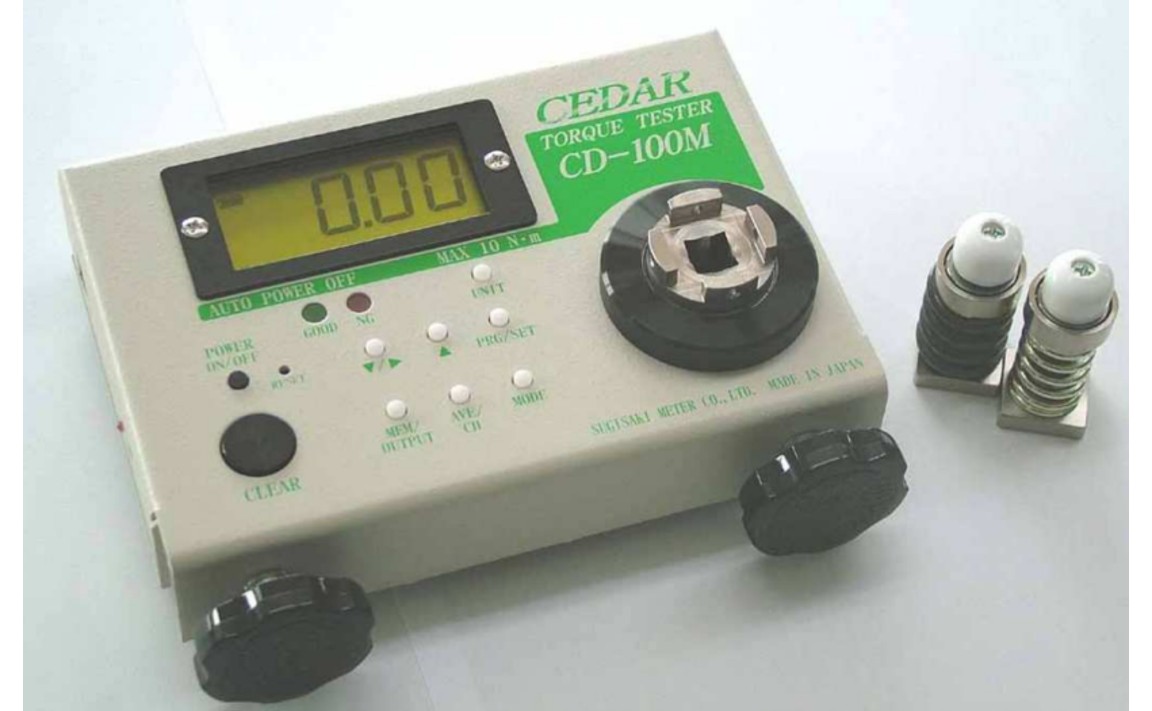

CD-10M

Torque Meter 0.1-10 Kgf-cm

Enquire Now

Categories: Screw Assembly Solutions, Torque Meters/Testers Tags: screw assembly, screw assembly solutions, test and measurement, torque, torque meter, torque tester

Key Features
Attachments

Key Features

Product Highlights

It is a Japanese Product.
One of the most popular Torque tester in the market.
Accuracy of ±0.5%.
For Management of torque of Electric Screw Driver.
Torque Range : 1~100 c N・m / 0.10~10 kgf・cm /0.10~9 lbf・in
Equipped with pass/fail function
Displays average, maximum and minimum value
Selectable measurement units
Memory size is 800 data
Equipped with USB port

Attachments

Product Datasheet

Download

Catalogue

Download
