Product Highlights

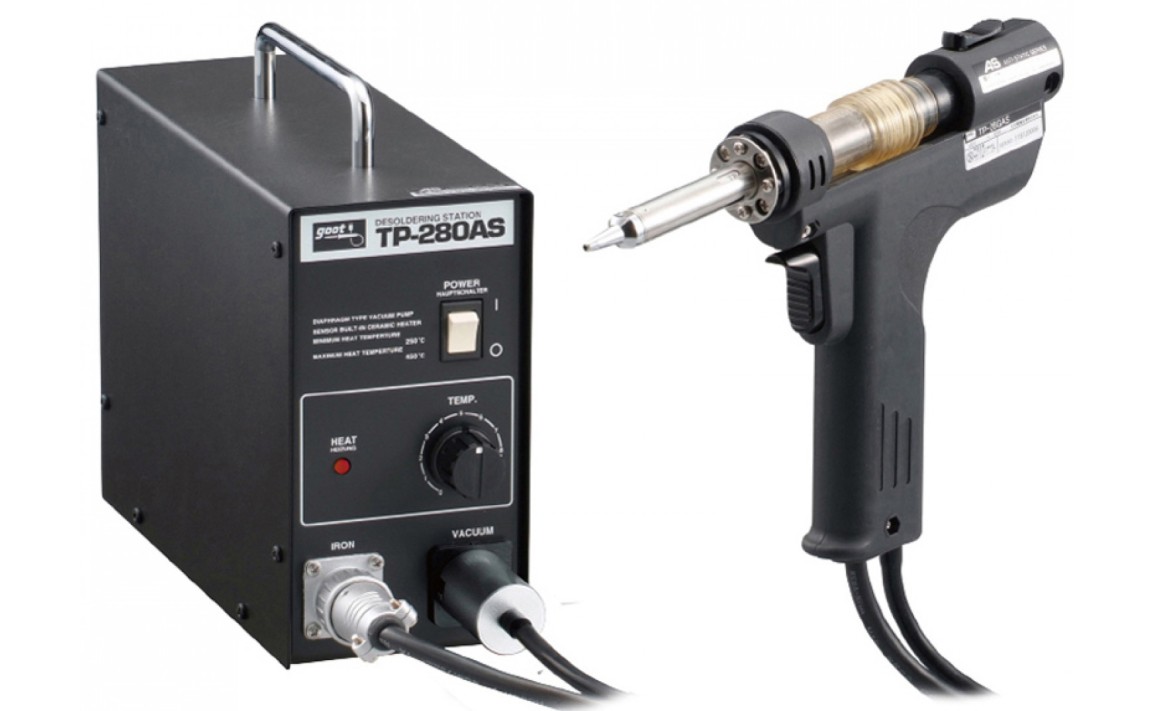

The TP-280AS Automatic Soldering, Desoldering and Rework Station is designed for fast and efficient removal of solder from terminals, connectors, and flat ICs. Its new open-valve mechanism provides high suction power and rapid vacuum build-up, while the ceramic heater with internal sensor and temperature-control circuit ensure stable desoldering performance.
- Automatic desoldering station with a new open-valve mechanism for high vacuum power and fast start-up.
- Temperature setting range of 250°C to 450°C.
- 400% more suction capacity with the open-valve mechanism for efficient solder removal.

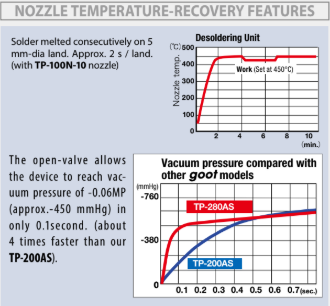

- Vacuum reaches -0.06 MPa (approximately -450 mmHg) in just 0.1 second, providing rapid solder suction.
- Two-stage trigger switch (PAT.P) activates the pump and open-valve mechanism for quick solder removal.
- Ceramic heater with internal sensor provides a wide temperature range for terminals, connectors, and flat ICs.
- Superior temperature-control circuit maintains a constant temperature during desoldering.
- Zero-volt switch circuit reduces electrical noise during heater ON/OFF operation.
- Replaceable cartridge filter makes filter replacement quick and easy.
- Diaphragm vacuum pump system provides up to -0.08 MPa (-600 mmHg) vacuum.
- Includes TP-100CP-13 cleaning pin and ST-76 soldering iron stand.
- Anti-static (ESD-safe), lead-free, and RoHS compliant.
