Abisofix A1LM
GOOT

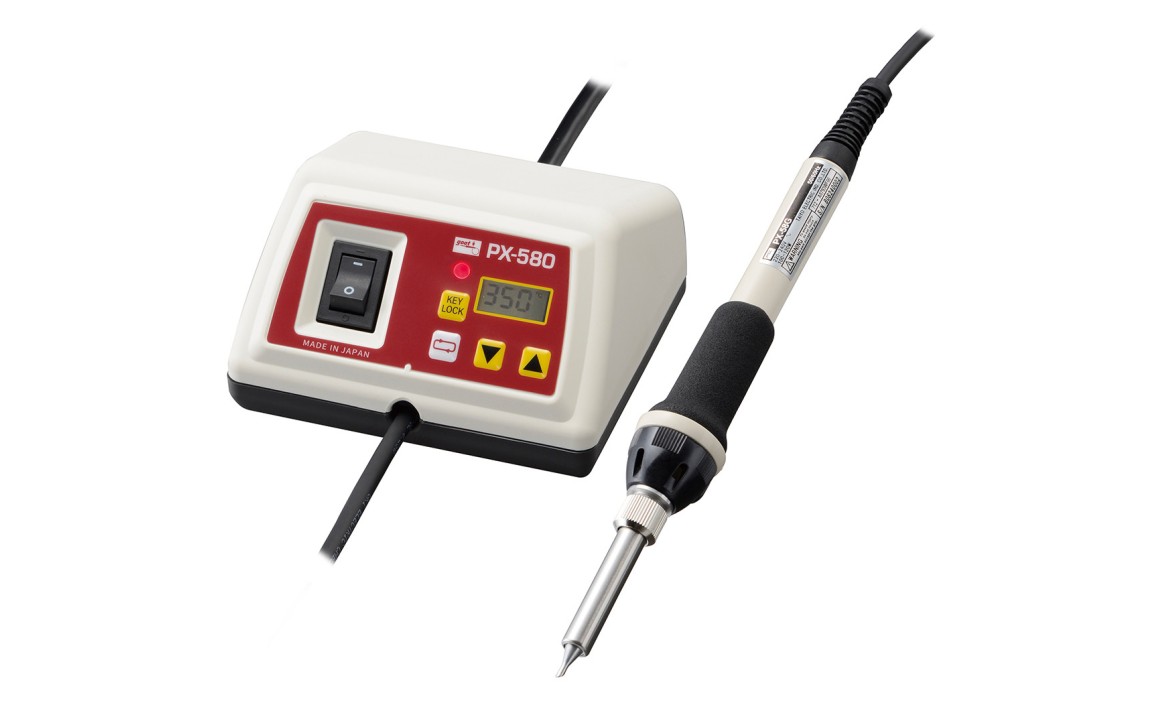

PX-580

Temperature control Soldering Station (250-450 Deg C, 100-120 Watt)

Enquire Now
Categories: , ,
Key Features

Product Highlights

  • Mini-station is space saving.
  • It takes up very little space.
  • The compact, both-handed iron unit and flexible cable for easy handling improve workability.
  • Sleep/Shutdown function gives much longer tip life!
  • You can confirm the set temperature at a glance by digital display.
  • Temperature can be set in 1°C increments from 200°C to 500°C with the UP key and DOWN key.
  • LED heat lamp.

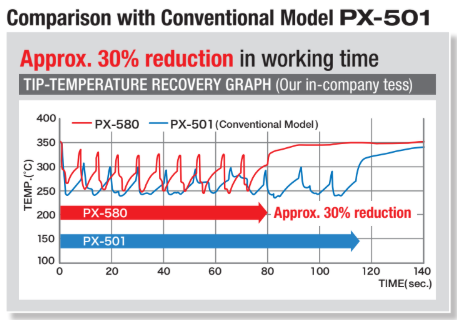

  • The high-power ceramic heater takes about 30 seconds to reach the set temperature of 350°C. (when using a standard soldering iron tip)
  • When iron is not used during preset time, it automatically lowers tip temperature to avoid tip-burn.
  • Lock with password, No tools or cards necessary.
Attachments

Product Datasheet

Download

Catalogue

Download
