GOOT

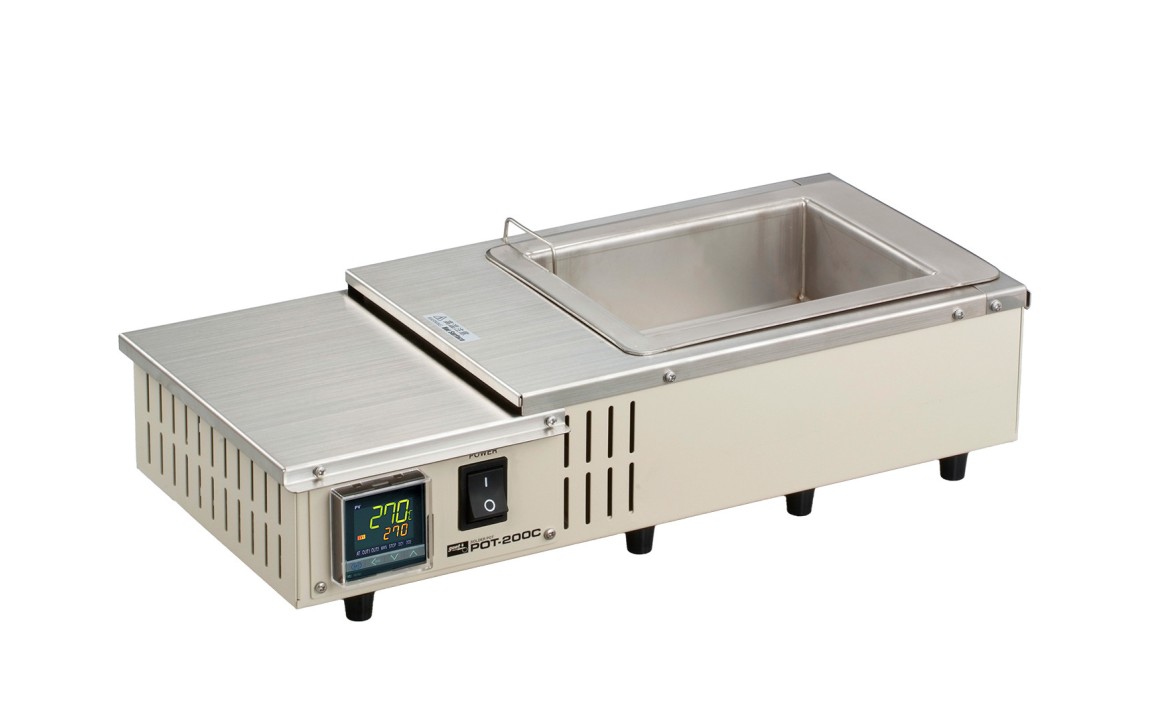

POT-200C

Solder Pot (650 Watts)

Enquire Now
Categories: ,
Key Features

Product Highlights

The POT-200C Solder Pot is designed for soldering applications requiring a large solder bath and high solder capacity. It features a durable SUS316 stainless-steel bath, PID temperature control, and a dual digital display showing both set and measured temperatures. The separated heater and bath structure also allows easy heater replacement.

  • Maximum temperature of 400°C.
  • Solder bath size: 180 (W) × 60 (H) × 130 (D) mm.
  • Solder capacity: approximately 9.5 kg.
  • SUS316 stainless-steel solder bath provides durable construction for demanding soldering applications.
  • PID temperature control provides accurate and stable temperature regulation.
  • Dual digital display shows both set temperature and measured temperature for easy monitoring.
  • Separated heater and bath structure allows easy heater replacement and simplifies maintenance.
  • Nichrome heater provides reliable heating performance.
  • Set temperature accuracy of ±{(1.25% of display temperature) + 1°C}.
  • 110V, 120V, 220V, and 240V AC versions available for 50/60 Hz operation.
  • 7 kg unit weight, excluding the power cord.
  • Lead-free solder applicable and RoHS compliant.
Attachments

Product Datasheet

Download
