Product Highlights

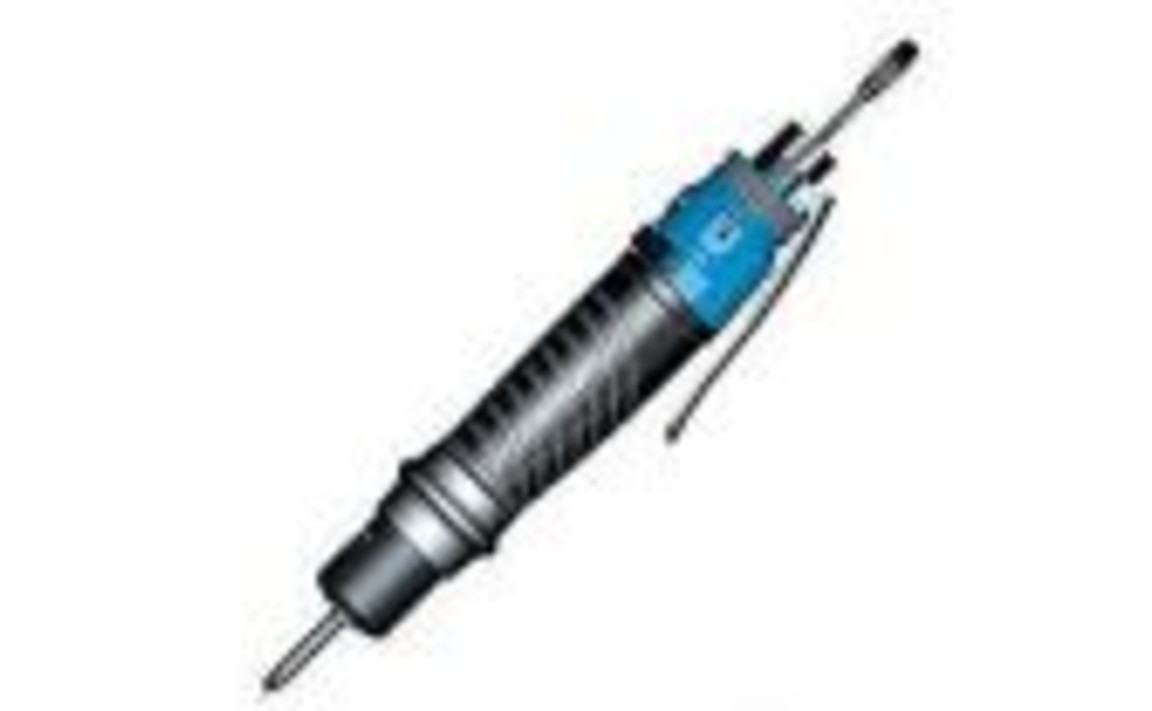

The ASA-T30PB is a push-to-start pneumatic screwdriver designed for controlled screw fastening applications. It provides a 2.0–16.0 kgf-cm torque range with ±3% torque accuracy and a no-load speed of 1800 rpm. Its patented clutch provides accurate torque control, while the staggered rail motion mechanism delivers one-pulse clutch shut-off with low vibration. The ergonomic design combines easy torque adjustment, a soft resin grip, and quick bit replacement for convenient operation.

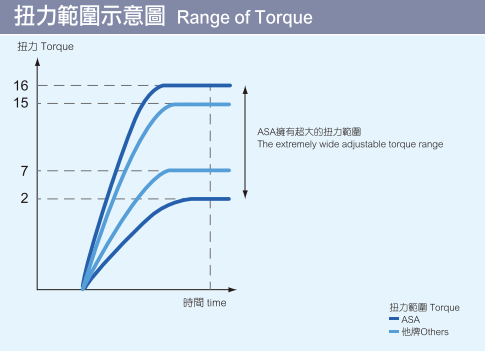

- Torque range: 2.0–16.0 kgf-cm / 1.7–13.9 lbf-in
- Accuracy: ±3%
- No-load speed: 1800 rpm
- Air pressure: 5.0 kgf/cm² inlet pressure / 6.35 mm external diameter
- Air consumption: 0.5 m³/min
- Machine screw size: 2.2–4.2 mm
- Tapping screw size: 1.7–3.2 mm
- Starting method: Push-to-start
- Clutch system: SRM clutch control system with one-pulse automatic shut-off and staggered rail motion mechanism
- Low vibration: Staggered rail motion mechanism provides low-vibration operation
- Torque adjustment: One-handed adjustment with quick torque increase/decrease
- Ergonomic grip: Soft resin grip designed for comfortable handling
- Quick bit replacement: Bit can be changed rapidly by pushing the bit head
- Torque identification: Color torque control system allows torque settings to be identified at a glance across the T series
