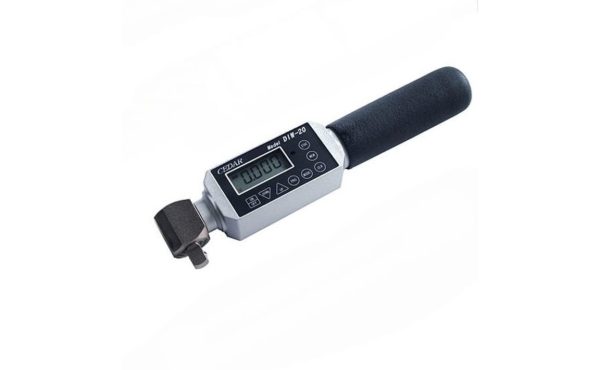

DIW-20
Screw Assembly Solutions
The DIW-20 is a digital torque wrench designed for accurate torque measurement and controlled tightening applications. It provides a torque range of <strong data-start="247" data-end="265">2.0-200 kgf-cm</strong> with ±0.5% reading accuracy. The wrench supports clockwise and counterclockwise operation with selectable Peak, Real Time, and Peak Down measurement modes. It also provides programmable high and low torque set points for GO/NO-GO testing and stores up to 800 measurement data points. <ul> <li data-section-id="1s9vd7b" data-start="606" data-end="671"><strong data-start="608" data-end="625">Torque Range:</strong> 2.0–200 kgf-cm / 0.20–20 N·m / 2.0–174 lbf-in</li> <li data-section-id="edauht" data-start="672" data-end="730"><strong data-start="674" data-end="687">Accuracy:</strong> Reading ±0.5% (499 or less digit ±3 digit)</li> <li data-section-id="14xcuph" data-start="731" data-end="770"><strong data-start="733" data-end="759">Measurement Direction:</strong> CW and CCW</li> <li data-section-id="qj6jcu" data-start="771" data-end="826"><strong data-start="773" data-end="795">Measurement Modes:</strong> Peak, Real Time, and Peak Down</li> <li data-section-id="1cjodps" data-start="827" data-end="894"><strong data-start="829" data-end="850">GO/NO-GO Testing:</strong> Programmable high and low torque set points</li> <li data-section-id="vkz44n" data-start="895" data-end="931"><strong data-start="897" data-end="918">Set Point Memory:</strong> Up to 5 sets</li> <li data-section-id="1gzzqic" data-start="932" data-end="966"><strong data-start="934" data-end="950">Data Memory:</strong> 800 data points</li> <li data-section-id="fo9l85" data-start="967" data-end="1029"><strong data-start="969" data-end="985">Data Output:</strong> USB output in ASCII format, 19200 baud rate</li> <li data-section-id="1osbdgq" data-start="1030" data-end="1065"><strong data-start="1032" data-end="1044">Display:</strong> 4-figure digital LCD</li> <li data-section-id="wprnx2" data-start="1066" data-end="1115"><strong data-start="1068" data-end="1083">Auto Clear:</strong> Adjustable from 0.0–3.0 seconds</li> <li data-section-id="1w4c95l" data-start="1116" data-end="1179"><strong data-start="1118" data-end="1128">Power:</strong> Ni-MH rechargeable battery, 1.2V × 4 cells, 800mAh</li> <li data-section-id="1cgsq8r" data-start="1180" data-end="1258"><strong data-start="1182" data-end="1198">Battery Use:</strong> Approximately 12 hours; charging time approximately 5 hours</li> <li data-section-id="1loaqgu" data-start="1259" data-end="1330" data-is-last-node=""><strong data-start="1261" data-end="1272">Weight:</strong> Approximately 470 g</li> </ul>

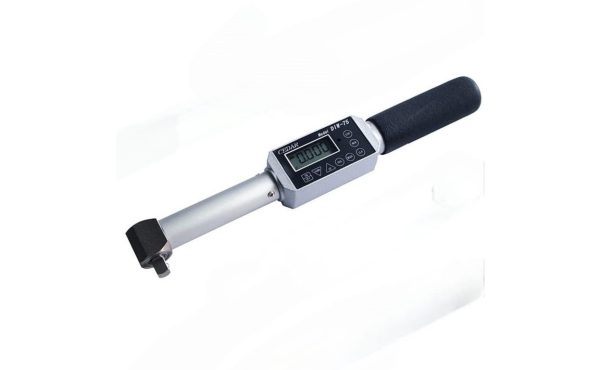

DIW-75
Screw Assembly Solutions
The DIW-75 is a digital torque wrench designed for accurate torque measurement and controlled tightening applications. It provides a torque range of <strong data-start="247" data-end="265">2.0–750 kgf-cm</strong> with ±0.5% reading accuracy. The wrench supports clockwise and counterclockwise operation with selectable Peak, Real Time, and Peak Down measurement modes. It also provides programmable high and low torque set points for GO/NO-GO testing and stores up to 800 measurement data points. <ul> <li data-section-id="83vtnb" data-start="606" data-end="671"><strong data-start="608" data-end="625">Torque Range:</strong> 2.0–750 kgf-cm / 0.20–75 N·m / 2.0–651 lbf-in</li> <li data-section-id="1tyay3q" data-start="672" data-end="730"><strong data-start="674" data-end="687">Accuracy:</strong> Reading ±0.5% (199 or less digit ±1 digit)</li> <li data-section-id="14xcuph" data-start="731" data-end="770"><strong data-start="733" data-end="759">Measurement Direction:</strong> CW and CCW</li> <li data-section-id="qj6jcu" data-start="771" data-end="826"><strong data-start="773" data-end="795">Measurement Modes:</strong> Peak, Real Time, and Peak Down</li> <li data-section-id="1cjodps" data-start="827" data-end="894"><strong data-start="829" data-end="850">GO/NO-GO Testing:</strong> Programmable high and low torque set points</li> <li data-section-id="vkz44n" data-start="895" data-end="931"><strong data-start="897" data-end="918">Set Point Memory:</strong> Up to 5 sets</li> <li data-section-id="1gzzqic" data-start="932" data-end="966"><strong data-start="934" data-end="950">Data Memory:</strong> 800 data points</li> <li data-section-id="fo9l85" data-start="967" data-end="1029"><strong data-start="969" data-end="985">Data Output:</strong> USB output in ASCII format, 19200 baud rate</li> <li data-section-id="1osbdgq" data-start="1030" data-end="1065"><strong data-start="1032" data-end="1044">Display:</strong> 4-figure digital LCD</li> <li data-section-id="wprnx2" data-start="1066" data-end="1115"><strong data-start="1068" data-end="1083">Auto Clear:</strong> Adjustable from 0.0–3.0 seconds</li> <li data-section-id="1w4c95l" data-start="1116" data-end="1179"><strong data-start="1118" data-end="1128">Power:</strong> Ni-MH rechargeable battery, 1.2V × 4 cells, 800mAh</li> <li data-section-id="1cgsq8r" data-start="1180" data-end="1258"><strong data-start="1182" data-end="1198">Battery Use:</strong> Approximately 12 hours; charging time approximately 5 hours</li> <li data-section-id="1lsick9" data-start="1259" data-end="1330" data-is-last-node=""><strong data-start="1261" data-end="1272">Weight:</strong> Approximately 620 g</li> </ul>
PARA-03110-OCE
Screw Assembly Solutions
<ul> <li><strong>Anodized aluminum finish.</strong></li> <li><strong>No metal-to-metal joints to create particle count.</strong></li> <li><strong>2-piece hinged forearm allows more freedom of movement in the assembly process.</strong></li> <li><strong>Telescoping reach from end of forearm allows easy adjustment in 1- inch increments.</strong></li> <li><strong>Resistance can be set to suit individual operator preference.</strong></li> <li><strong>Reduce operator fatigue.</strong></li> <li><strong>Provide consistency and accuracy for repetitive assembly tasks.</strong></li> <li><strong>Heavy duty construction.</strong></li> <li><strong>For use with pneumatic and electric tools.</strong></li> </ul> <div class="WaaZC"> <div class="RJPOee EIJn2"></div> </div>
ST1-1
Electric Screwdrivers
<ul> <li><strong>Data traceability.</strong></li> <li><strong>It supports 500+ and max. 500 screw types data settings.</strong></li> <li><strong>1 controller activates 2 Servo screwdriver.</strong></li> <li><strong>Torque, angle , seating point control strategy and monitoring.</strong></li> <li><strong>Torque closed-loop control, repeatability with high precision.</strong></li> <li><strong>Problem analysis: stripped / floating screw ... etc.</strong></li> <li><strong>Improves productivity.</strong></li> <li><strong>Improves process control and product quality; decreases material waste.</strong></li> </ul>
ST1-12SA
Screw Assembly Solutions
The ST1-12SA is an ASA servo screwdriver designed for controlled screw fastening with precise torque and angle management. It provides a 2.4-12 kgf-cm torque range, ±3% precision, and a maximum speed of 2000 RPM. The screwdriver operates at 38V DC and supports switchable lever-start and push-to-start operation. Its compact 271 mm length and 480 g weight support practical use in automated and controlled assembly environments. <ul> <li data-section-id="t4tm4i" data-start="589" data-end="622"><strong data-start="591" data-end="608">Torque Range:</strong> 2.4-12 kgf-cm</li> <li data-section-id="1onzv5v" data-start="623" data-end="643"><strong data-start="625" data-end="639">Precision:</strong> ±3%</li> <li data-section-id="oyqzao" data-start="644" data-end="673"><strong data-start="646" data-end="664">Maximum Speed:</strong> 2000 RPM</li> <li data-section-id="1mysph8" data-start="674" data-end="701"><strong data-start="676" data-end="694">Input Voltage:</strong> 38V DC</li> <li data-section-id="jg9dq3" data-start="702" data-end="764"><strong data-start="704" data-end="724">Starting Method:</strong> Lever start / push-to-start, switchable</li> <li data-section-id="ja07ve" data-start="765" data-end="785"><strong data-start="767" data-end="778">Length:</strong> 271 mm</li> <li data-section-id="hq5eqx" data-start="786" data-end="805"><strong data-start="788" data-end="799">Weight:</strong> 480 g</li> <li data-section-id="1qqtfu5" data-start="806" data-end="842"><strong data-start="808" data-end="836">Handle Outside Diameter:</strong> 34 mm</li> <li data-section-id="1ifibig" data-start="843" data-end="902"><strong data-start="845" data-end="868">Available Bit Size:</strong> 5.0 mm / 6.35 mm (1/4") hex shank</li> <li data-section-id="dxgyq4" data-start="903" data-end="943"><strong data-start="905" data-end="931">Operating Temperature:</strong> 0°C to 40°C</li> <li data-section-id="1lpsiei" data-start="944" data-end="982"><strong data-start="946" data-end="970">Storage Temperature:</strong> 0°C to 60°C</li> <li data-section-id="1j9k7zz" data-start="983" data-end="1049" data-is-last-node=""><strong data-start="985" data-end="1006">Protection Class:</strong> IP40</li> </ul>
ST1-30SA
Screw Assembly Solutions
The ST1-30SA is an ASA servo screwdriver designed for controlled screw fastening with precise torque and angle management. It provides a 6-30 kgf-cm torque range, ±3% precision, and a maximum speed of 1100 RPM. The screwdriver operates at 38V DC and supports switchable lever-start and push-to-start operation, with a 271 mm length and 480 g weight. <ul> <li data-section-id="1c1fd5o" data-start="508" data-end="539"><strong data-start="510" data-end="527">Torque Range:</strong> 6-30 kgf-cm</li> <li data-section-id="1onzv5v" data-start="540" data-end="560"><strong data-start="542" data-end="556">Precision:</strong> ±3%</li> <li data-section-id="1fsqi8i" data-start="561" data-end="590"><strong data-start="563" data-end="581">Maximum Speed:</strong> 1100 RPM</li> <li data-section-id="1mysph8" data-start="591" data-end="618"><strong data-start="593" data-end="611">Input Voltage:</strong> 38V DC</li> <li data-section-id="jg9dq3" data-start="619" data-end="681"><strong data-start="621" data-end="641">Starting Method:</strong> Lever start / push-to-start, switchable</li> <li data-section-id="ja07ve" data-start="682" data-end="702"><strong data-start="684" data-end="695">Length:</strong> 271 mm</li> <li data-section-id="hq5eqx" data-start="703" data-end="722"><strong data-start="705" data-end="716">Weight:</strong> 480 g</li> <li data-section-id="1qqtfu5" data-start="723" data-end="759"><strong data-start="725" data-end="753">Handle Outside Diameter:</strong> 34 mm</li> <li data-section-id="1ifibig" data-start="760" data-end="819"><strong data-start="762" data-end="785">Available Bit Size:</strong> 5.0 mm / 6.35 mm (1/4") hex shank</li> <li data-section-id="dxgyq4" data-start="820" data-end="860"><strong data-start="822" data-end="848">Operating Temperature:</strong> 0°C to 40°C</li> <li data-section-id="1lpsiei" data-start="861" data-end="899"><strong data-start="863" data-end="887">Storage Temperature:</strong> 0°C to 60°C</li> <li data-section-id="1j9k7zz" data-start="900" data-end="966" data-is-last-node=""><strong data-start="902" data-end="923">Protection Class:</strong> IP40</li> </ul>
ST1-50SA
Screw Assembly Solutions
The ST1-50SA is an ASA servo screwdriver designed for controlled screw fastening with precise torque and angle management. It provides a 10-50 kgf-cm torque range, ±3% precision, and a maximum speed of 700 RPM. The screwdriver operates at 38V DC and supports switchable lever-start and push-to-start operation. It features a 271 mm length, 480 g weight, and 34 mm handle outside diameter. <ul> <li data-section-id="5wm4vh" data-start="548" data-end="580"><strong data-start="550" data-end="567">Torque Range:</strong> 10-50 kgf-cm</li> <li data-section-id="1onzv5v" data-start="581" data-end="601"><strong data-start="583" data-end="597">Precision:</strong> ±3%</li> <li data-section-id="1o98yhx" data-start="602" data-end="630"><strong data-start="604" data-end="622">Maximum Speed:</strong> 700 RPM</li> <li data-section-id="1mysph8" data-start="631" data-end="658"><strong data-start="633" data-end="651">Input Voltage:</strong> 38V DC</li> <li data-section-id="jg9dq3" data-start="659" data-end="721"><strong data-start="661" data-end="681">Starting Method:</strong> Lever start / push-to-start, switchable</li> <li data-section-id="ja07ve" data-start="722" data-end="742"><strong data-start="724" data-end="735">Length:</strong> 271 mm</li> <li data-section-id="hq5eqx" data-start="743" data-end="762"><strong data-start="745" data-end="756">Weight:</strong> 480 g</li> <li data-section-id="1qqtfu5" data-start="763" data-end="799"><strong data-start="765" data-end="793">Handle Outside Diameter:</strong> 34 mm</li> <li data-section-id="1ifibig" data-start="800" data-end="859"><strong data-start="802" data-end="825">Available Bit Size:</strong> 5.0 mm / 6.35 mm (1/4") hex shank</li> <li data-section-id="dxgyq4" data-start="860" data-end="900"><strong data-start="862" data-end="888">Operating Temperature:</strong> 0°C to 40°C</li> <li data-section-id="1lpsiei" data-start="901" data-end="939"><strong data-start="903" data-end="927">Storage Temperature:</strong> 0°C to 60°C</li> <li data-section-id="1j9k7zz" data-start="940" data-end="1006" data-is-last-node=""><strong data-start="942" data-end="963">Protection Class:</strong> IP40</li> </ul>
ST1-75SA
Screw Assembly Solutions
