GOOT

RX-780AS

High-performance soldering station.

Enquire Now
Categories: ,
Key Features

Product Highlights

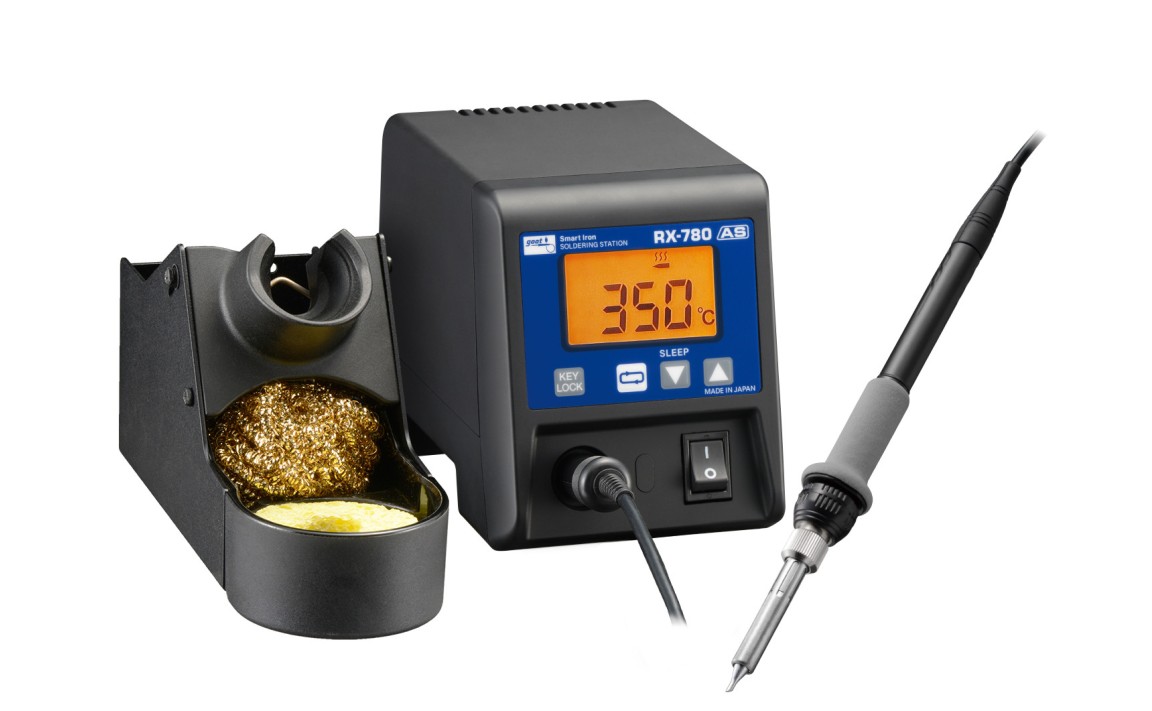

The RX-780AS Temperature-Controlled Soldering Station is a high-performance soldering solution designed for fast heat recovery and precision soldering. It reaches 350°C in just 30 seconds and features automatic sleep and shutdown functions with a built-in vibration sensor, making it ideal for continuous professional use.

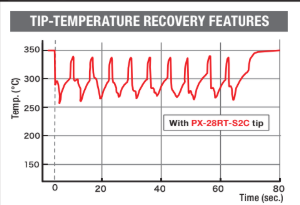

  • Reaches 350°C in just 30 seconds for fast start-up.
  • Automatic sleep and shutdown functions save energy and extend tip life.
  • Built-in vibration sensor wakes the iron instantly when moved.
  • Temperature adjustable from 200°C to 480°C.

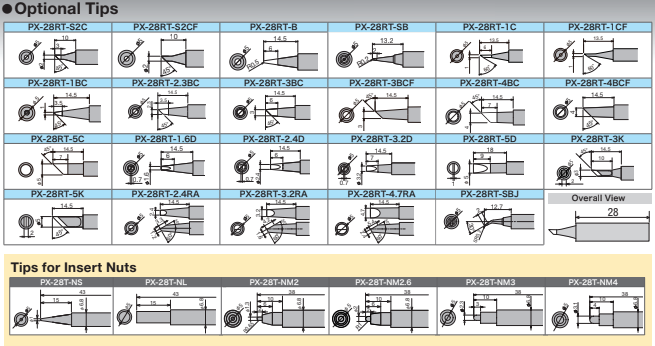

  • Compatible with a wide range of PX-28RT series soldering tips.
  • Supports lead-free soldering applications.
  • RoHS compliant and suitable for anti-static (ESD-safe) work environments.
Attachments

Product Datasheet

Download
