Product Highlights

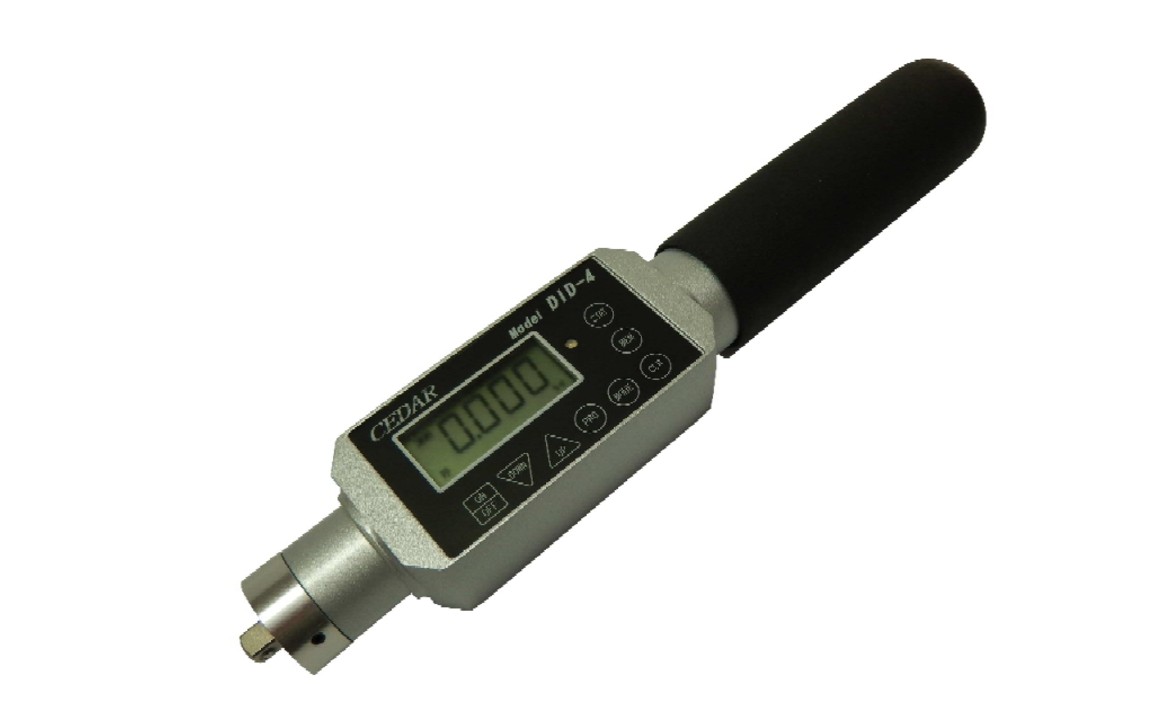

The DID-4 Digital Torque Driver is an ergonomic, lightweight, and ruggedly constructed torque screwdriver designed for accurate torque measurement and uniform screw tightening. It offers selectable Peak, Real Time, and Peak Down measurement modes, programmable high and low torque limits, and GO/NO GO judgment with audible and LED indicators. The unit also features five-channel setting memory, an adjustable screw tightening counter, Auto Zero function, 800-data memory, USB data output, and both clockwise and counterclockwise operation.
- Measuring range of 0.20–40 kgf-cm for precise torque measurement.
- Accuracy of ±0.5% with ±3 digits for readings of 499 digits or less.
- Selectable measurement modes: Peak-to-Peak, Track, Peak-Down, and Real-Time Output.
- CW and CCW operation supports clockwise and counterclockwise tightening.
- GO/NO GO judgment function with programmable high and low torque limits.
- Audible beep and Green/Red LED indicators provide clear tightening status feedback.
- Five-set memory allows different tightening conditions to be saved and recalled easily.
- Programmable screw tightening counter supports counting from 1 to 99 tightening operations.
- Programmable Auto Zero function automatically resets the unit to zero for easy operation.
- 800-data memory stores measurement results for later reference.
- Maximum, minimum, and average value display provides useful measurement statistics.
- Real-time torque output approximately every 1/160 second.
- USB ASCII data output with a baud rate of 19200.
- 4-digit LCD display provides clear measurement readings.
- Rechargeable Ni-MH battery provides approximately 12 hours of continuous use after about 3 hours of charging.
- Automatic power-off after 10 minutes of inactivity.
