Soldering & Desoldering Station

Print Name: Anti-Static Temp. controlled service station (Combined Soldering & Desoldering and rework Station)
Brand: goot Japan
Product Code: SVS-800AS
Waranty : 12 Months
Availability: In Stock
Price:
Rs.133350.00

Ex Tax: 12.5%

(1) Data-Sheet-goot smd-PTH rework.pdf

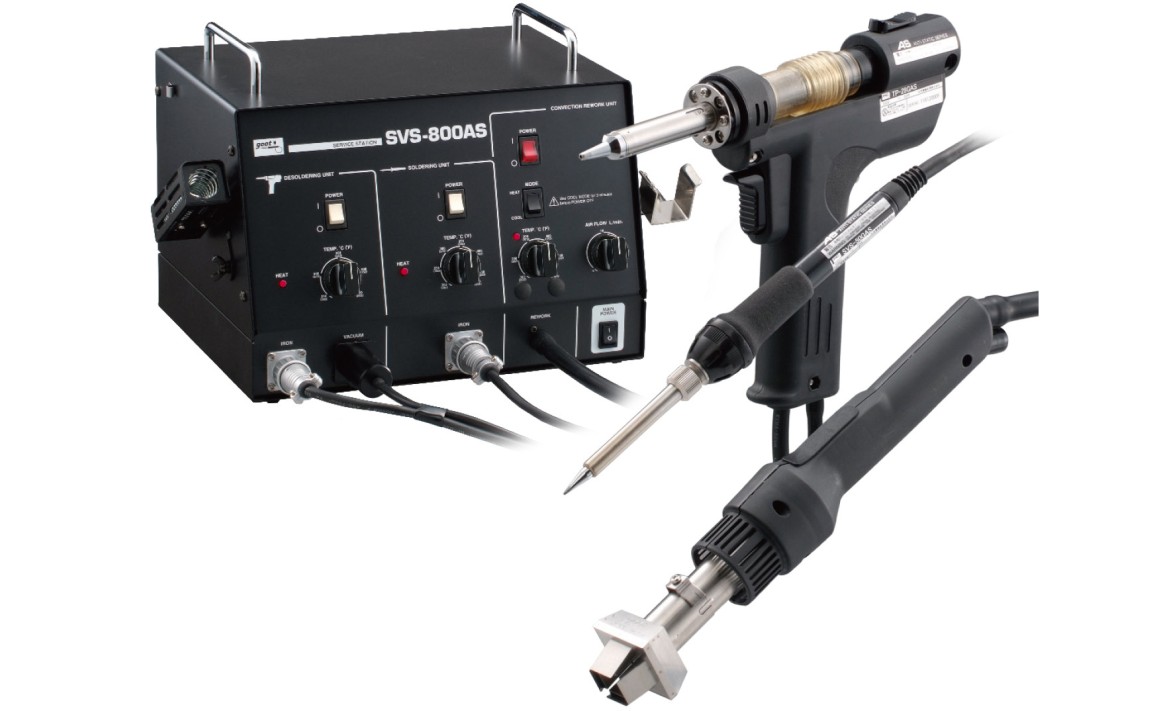

SERVICE STATION SVS-800AS

REWORK UNIT

The temperature can be set to max 550°C.

SOLDERING UNIT

Good for a wide range of soldering work with 70W heater.

DESOLDERING UNIT

Instant desoldering with open-valve mechanism.(Please refer to the next page.)

INDIVIDUAL POWER SWITCHES

Along with the main power switch, there are switches for soldering, desoldering, and reworking.


Independent Pumps

Desoldering and reworking operate simultaneously


400% More Suction Capacity

With open-valve mechanism


Ceramic Heater with Internal Sensor

A wide range for terminals, connectors and flat ICs (soldering & desoldering)


Superior Temperature-Control Circuit

To keep the temperature constant during desoldering


Zero Volt Switch Circuit

Reduces noise during heater ON/OFF


OPEN-VALVE MECHANISM

Two-stage trigger switch (PAT.P)

Step 1

Pulling the trigger (lightly) activates the first stage switch. The pump starts, and the air pressure decreases in the vacuum chamber.

Step 2

Next, pulling the trigger fully activates the second stage. The open-valve will open, and the solder is sucked up at once by the negative pressure in the vacuum chamber.

Replaceable Cartridge Filter

Makes changing the filter easy


TIP/NOZZLE TEMPERATURE-RECOVERY FEATURES
Desoldering/Soldering time is approx. 2 seconds / 5×5mm land (with PX-2RT-B tip, TP-100N-10 nozzle)
Vacuum pressure compared with other goot models

The open-valve allows the device to reach vacuum pressure of -0.06MP (approx.-450mmHg) in only 0.1second. (about 4 times faster than our SVS-500AS).

SUCTION CAPACITY COMPARISON

The arrow indicates solder residue.




 SPECIFICATION

MODEL SVS-800AS
Voltage 220-240V AC 50/60Hz
Power Consumption 670-760W
Power Cord Length 1.5m Inlet type
Temp. Setting Range Desoldering Unit 250−450°C
Soldering Unit 200−480°C
Rework 150-550℃
Insulation Resistance  Over 10MΩ(500V DC)
Vacuum Pump System Diaphragm system
Vacuum - 0.08MPa (-600mmHg)
Air Flow 5-25L /min
Accessories Cleaning pin TP-100CP-13 / Soldering iron stand ST-76
Total Weight 9.3kg



CONTROL BOX
Output Voltage 220-240V AC
Dimensions 405(W) × 240(H) × 235(D)mm
Weight 8.4kg (w/o cord, hose )



DESOLDERING UNIT
Input Voltage/Power Consumption 220-240V AC  / 85W
Heater Ceramaic Heater
Cord Length 1.2m
Dimensions 220 x 155mm
Weight 250g (w/o cord, hose )
Standard Nozzle TP-100N-S5
SOLDERING UNIT
Input Voltage/Power Consumption 220-240V AC  / 70W
Ground Resistance Less than 2Ω
Leak Voltage Less than 2mV
Heater Ceramic heater
Cord Length 1.2m
Length 190mm (with PX-2RT-B, w/o cord bushing)
Weight 70g (with PX-2RT-B, w/o cord)
Standard Tip PX-2RT-B



REWORK UNIT
Input Voltage/Power Consumption 220-240V AC  / 370-430W
Heater Nichrome Heater
Hose length between  1m
Handpiece and Control Unit
Length 220mm (w/o cord)
Weight 180g (w/o nozzle, cord)
