RX-822AS
GOOT

RX-812AS

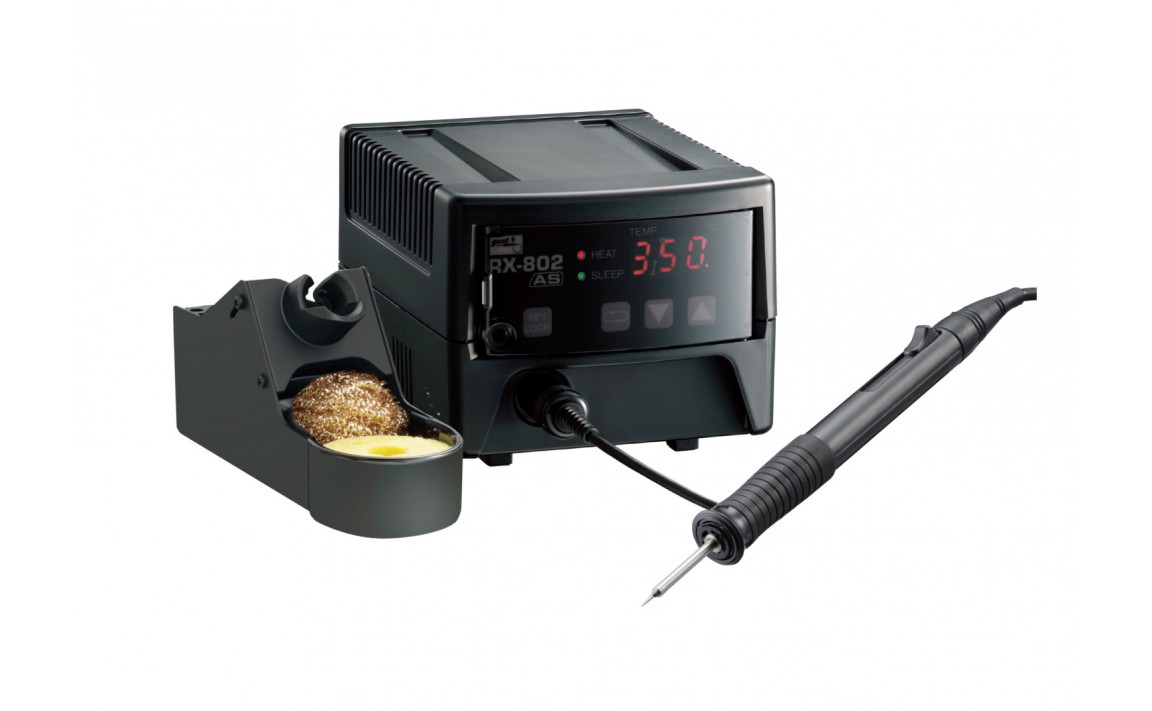

Temperature controlled Soldering Station (80 watt 50-450 degree C)

Enquire Now
Categories: ,
Key Features

Product Highlights



  • The Goot RX-812AS is a temperature-controlled, 80W, lead-free soldering station designed for soldering and desoldering small electronic parts.
  • Very thin grip, Improved handling and visibility.
  • Reaches set temperature within 4 seconds after turning power on.
  • New grip is designed for and adapted to ø2.9 mm superfine tip.
  • 80 W RX-80HRT Tips also available instead of RX-81HRT tip.

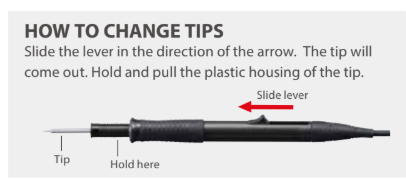

  • Slide-change tip. Easy to replace a hot tip without any other tools.
  • All tips have extra-thick iron plating, to resist erosion by lead-free solder.
Attachments

Product Datasheet

Download

Catalogue

Download
